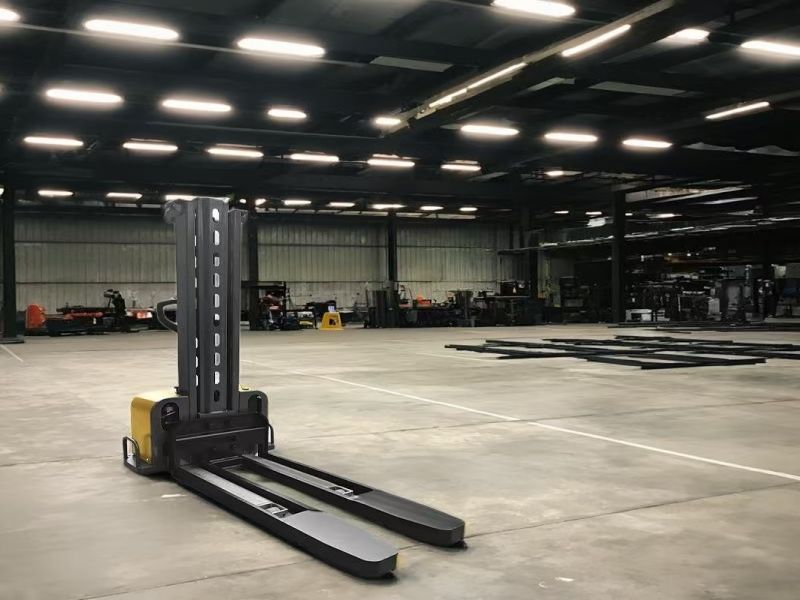

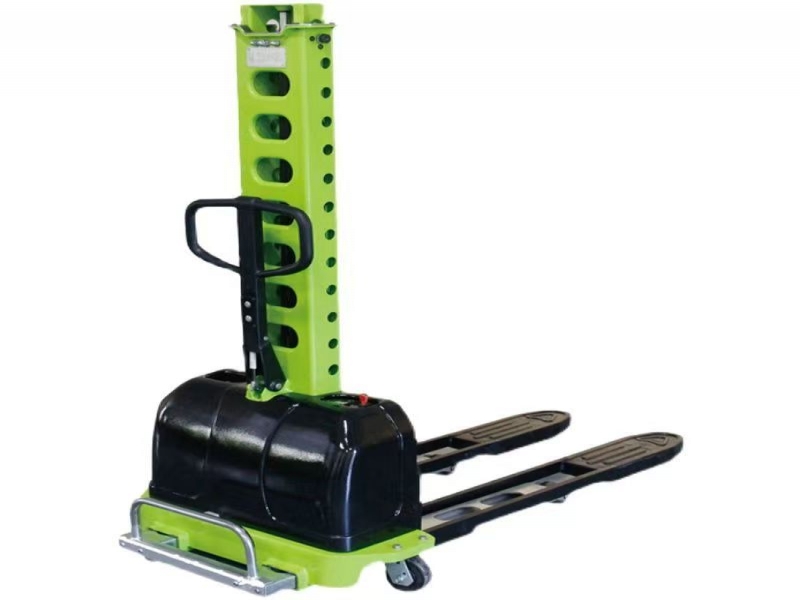

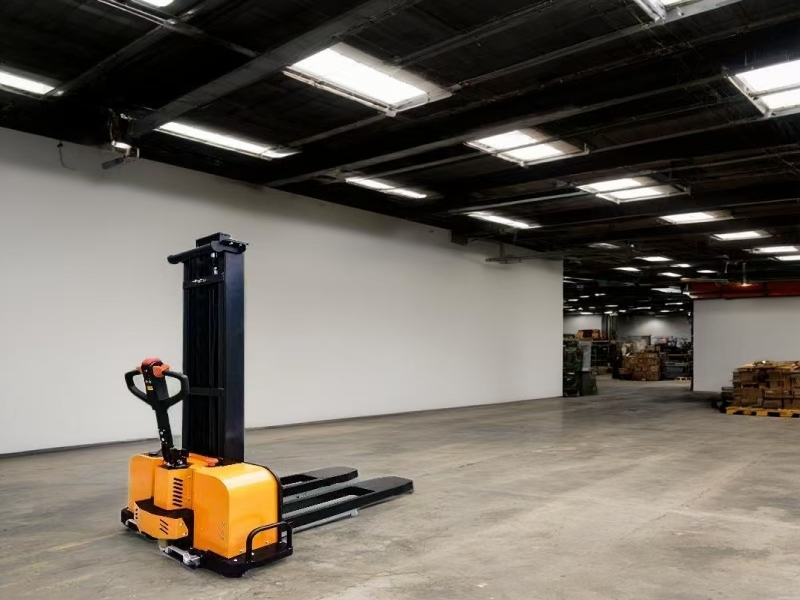

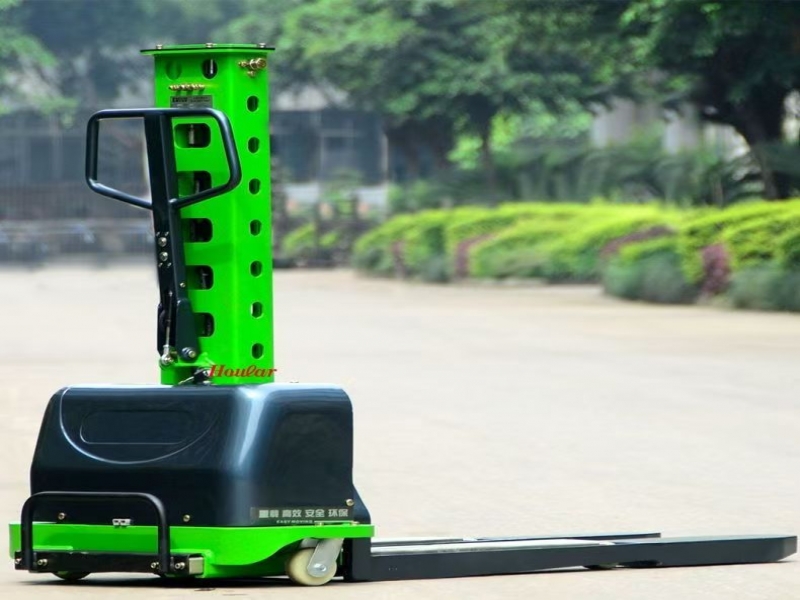

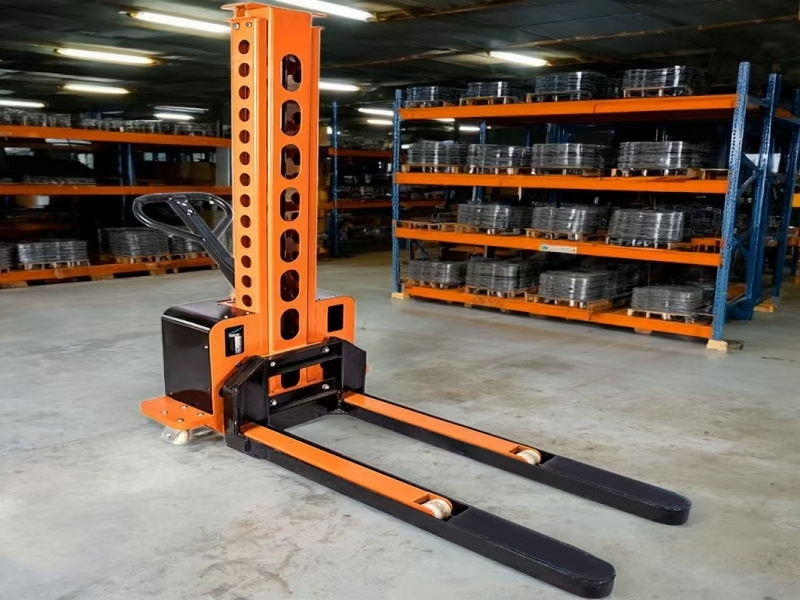

Small portable semi-electric fully electric vehicle-mounted forklift with self-lifting stacker crane for loading and unloading and transporting electric forklifts
- Model: TX10 TX13
- Brand: helplift
- Port:
- Quantity:
| 型号 Model | 单位 | TX10 | TX13 |
| 操作类型 Operation type | 全电动 Electric | ||
| 额定载重 load capacity | kg | 1000 | 1300 |
| 载荷中心距 Load center | mm | 400 | |
| 尺寸 Dimension | |||
| 起升高度 Lifting height | mm | 1300 | |
| 门架静态高度 Mast lower height | mm | 1450/1650/1850 | |
| 门架最大高度 Mast extend height | mm | 2680/2880/3080 | |
| 整体长度 Overall length | mm | 1660 | |
| 整车宽度 Overall width of frame | mm | 890 | |
| 轴距 Wheel base | mm | 995 | |
| 货叉长度 Fork length | mm | 1150 | 1160 |
| 单个货叉宽度 | mm | 195 | |
| 货叉厚度 | mm | 75 | |
| 货叉外宽 Overall fork width | mm | 620 | |
| 货叉内侧宽度 Fork inside width | mm | 230 | |
| 最小转弯半径 MiniTurning radius | mm | 1300 | |
| 货叉降至最低时高度 Fork lowered height | mm | 85 | |
| 通道宽度（800*1200 托盘）Channel width | mm | 1850 | |
| 通道宽度（1000*1200 托盘）Channel width | mm | 2050 | |
| 车轮 Wheels | |||
| 轮子类型 Wheels type | PU | ||
| 承载轮 Front wheel | mm | ￠80*50 | ￠80*60 |
| 驱动轮尺寸 Size of drive wheels | mm | ￠190*75 | ￠210*75 |
| 轮子数量 Number of wheels | pcs | 1+1+4 | |
| 性能 Performance | |||
| 起升速度（满载/空载） Lift speed (laden/unladen） | mm/s | 135/140 | |
| 下降速度（满载/空载） lowering speed（laden/unladen) | mm/s | 145/140 | |
| 爬坡能力（满载/空载） Gradeability（laden/unladen | % | 3.0/5.0 | |
| 行走速度（手柄自行调节）Walking speed（Manual adjustment） | mm/s | 0.8 | |
| 电气配置 Electrical configuration | |||
| 驱动电机类型 Type or drive motor | DC 直流电机 | ||
| 功率 Rated output | km | 0.75 | 0.8 |
| 起升电机类型 Hoist motor type | DC 直流电机 | ||
| 功率 Rated output | km | 1.5 | 2 |
| 蓄电池电压/容量 Battery voltage/capacity | V/Ah | 48V20AH | |
| 重量 Weight | |||
| 自重 weight | kg | 380 | 415 |
| 半电动特性 Feature | |||
| Model | 单位 | TX06 | TX07 |
| Operation type | 半电动Semi-electric | ||
| load capacity | kg | 500 | 1000 |
| Load center | mm | 400 | |
| 尺寸 Dimension | |||
| Lifting height | mm | 1300 | |
| Mast lower height | mm | 1450/1650/1850 | |
| Mast extend height | mm | 2680/2880/3080 | |
| length | mm | 1660 | |
| width | mm | 890 | |
| Fork length | mm | ||
| 车轮 Wheels | |||
| type | PU | ||
| Number of wheels | pcs | 1+1+4 | |
