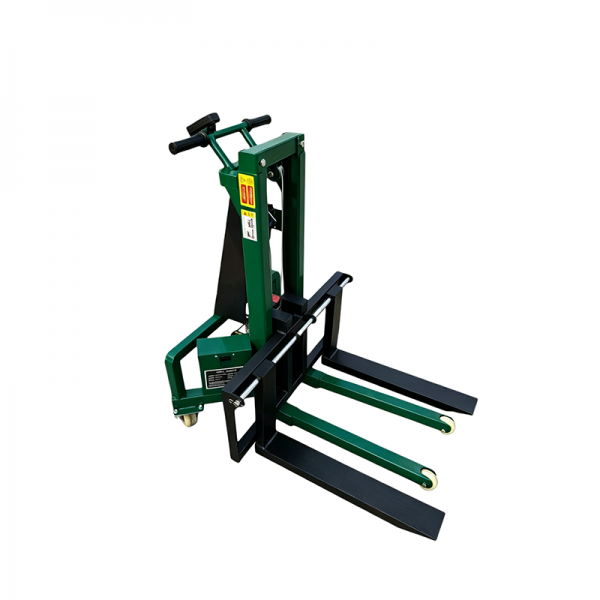

Compact material lift / green

Product Specifications / 产品参数规格

An alternative compact lift configuration with a handle-mounted control layout.

紧凑型升降机另一配置方案，采用手柄集成式控制按键布局。

[Capacity: 200-250 kg] 【额定载重：200-250 kg】
[Lift height: 1.2-2.0 m] 【起升高度：1.2-2.0 m】
[Unit weight: 65-75 kg] 【整机净重：65-75 kg】

Power: 12V 20Ah Lead-acid Battery (OEM Supported)	动力系统：12V 20Ah 铅酸蓄电池（支持 OEM 定制）
Platform / fork size: Fork length 60cm	平台/货叉规格：叉长 60cm

Key Specifications

Model Specifications / 型号参数规格表

Model code 型号代码	Capacity 额定载重	Lift height 起升高度	Machine height 整机高度	Net weight 净重	Wooden case dimensions 木箱包装尺寸	Packed weight 包装重量
Model code 型号代码 ZGLSBXZCJ120	Capacity 额定载重 250kg	Lift height 起升高度 1.2m	Machine height 整机高度 1.04m	Net weight 净重 65kg	Wooden case dimensions 木箱包装尺寸 133 x 83 x 52cm	Packed weight 包装重量 93kg
Model code 型号代码 ZGLSBXZCJ160	Capacity 额定载重 250kg	Lift height 起升高度 1.6m	Machine height 整机高度 1.24m	Net weight 净重 70kg	Wooden case dimensions 木箱包装尺寸 133 x 83 x 52cm	Packed weight 包装重量 93kg
Model code 型号代码 ZGLSBXZCJ200	Capacity 额定载重 200kg	Lift height 起升高度 2.0m	Machine height 整机高度 1.53m	Net weight 净重 75kg	Wooden case dimensions 木箱包装尺寸 159 x 83 x 52cm	Packed weight 包装重量 100kg

Key Features

Features, Applications & After-Sales / 功能特性、应用场景与售后说明

FEATURES & APPLICATIONS: 功能特性：

Adjustable fork arm width, 货叉臂间距可调、
battery overcharge protection, 蓄电池过充保护、
battery level display, 电量数显监控、
double wire rope safety, 双钢丝绳安全防坠系统、
lightweight for elevator access. 整机轻便可直接推入客货电梯。

Applications: Suitable for the stage and performance industry, for transporting stage audio and lighting flight cases; also suitable for small warehouses, stores, and exhibition sites, for short-distance stacking, loading and unloading of light goods.

应用场景：适用于舞台演艺及会展行业，转运音响灯光航空机箱；亦适用于小型仓库、商超门店及展会场馆进行短距离堆叠与轻载货物装卸。

CERTIFICATION & AFTER-SALES: 认证与售后：

CE; compliant with the EU Machinery Directive.	CE 认证；符合欧盟机械指令。
Warranty: 1 year for the whole machine; 3 months for wearing parts.	保修期：整机质保 1 年；易损件质保 3 个月。
Wearing parts: Steel wire rope, cylinder seal ring, front wheel (polyurethane), charger.	易损件清单：钢丝绳、油缸密封圈、前轮（聚氨酯 PU 轮）、充电器。

Applications

FAQ

→ Q: What’s new in this upgraded version compared to the standard model?

This model features adjustable-width forks, built-in battery protection, a clear power indicator, and enhanced steel wire rope safety protection for better versatility, safety, and convenience.

→ Q: What is the packing size and gross weight for shipping?

The 1.2m/1.6m models have a gross weight of 93kg with packing size 133×83×52cm; the 2m model has a gross weight of 100kg with packing size 159×83×52cm, all packed in wooden cases for safe transport.

→ Q: Can you provide OEM/ODM services for this forklift?

Yes, we support customizations including logo printing, color, and design adjustments to meet your brand and business needs.

→ Q: Does this model have CE certification?

Yes, all upgraded models are CE certified, meeting European safety standards for lifting equipment.

→ Q: Is this forklift suitable for narrow spaces?

Absolutely. Its compact design and maneuverable structure are ideal for operation in tight aisles, workshops, retail stores, and event setups where large forklifts cannot fit.

→ Q: How long does the battery last on a full charge?

With a full charge, the battery supports continuous use for 4–6 hours (depending on load and usage frequency), meeting daily light to medium-duty handling needs.

→ Q: What lifting height options are available?

We offer three standard lifting heights: 1.2m, 1.6m, and 2m, to meet different stacking and loading needs.

→ Q: Is the steel wire rope protected?

Yes, the upgraded model has enhanced steel wire rope protection to reduce wear, improve safety, and extend service life.

→ Q: How do I check the battery level?

The forklift is equipped with a clear power indicator, allowing you to check the battery level at a glance to avoid unexpected power outages.

→ Q: Does this forklift have a battery protection system?

Yes, it comes with a built-in battery protection system to prevent overcharging, over-discharging, and short circuits, extending battery life and ensuring safe operation.

→ Q: Can the fork width be adjusted?

Yes, the adjustable-width forks can adapt to different pallet sizes, boxes, and equipment, making the forklift more versatile for various handling scenarios.

→ Q: What is the maximum load capacity of this upgraded portable forklift?

The upgraded model supports a maximum load capacity of 300kg, with 250kg/200kg rated loads for different height versions, suitable for light to medium-duty material handling.
