Electric scaffold platform
- Model: ZGDDJSJ
- Brand: zghelplift
- Port: shanghai
- Quantity:

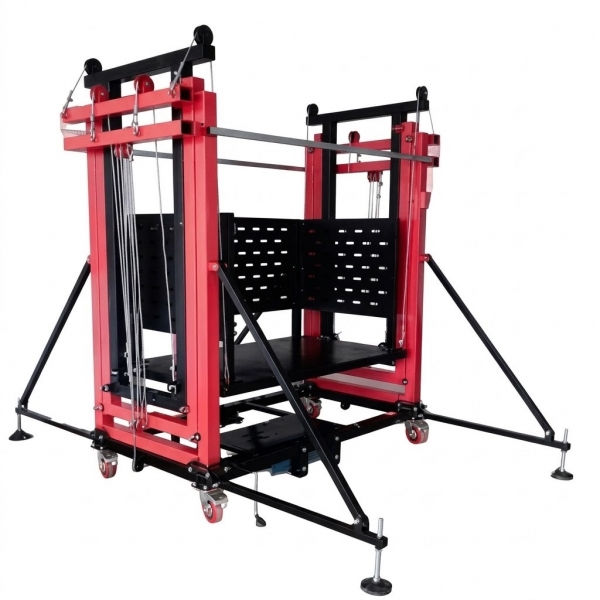

A powered scaffold platform with guardrails, outriggers and wireless remote control listed in the source.
电动驱动高空作业脚手架平台，标配安全护栏、可伸缩支腿及无线遥控装置。
- [Capacity options: 300 / 500 kg] 【额定载重可选：300 / 500 kg】
- [Power supply: 220 V / 50 Hz] 【电源规格：220 V / 50 Hz】
- [Platform size: 150 x 70 cm] 【作业平台尺寸：150 x 70 cm】
| Power: 220V AC 50Hz (OEM Supported) | 动力系统：220V AC 50Hz（支持 OEM 定制） |
| Base size: 160cm x 80cm | 底座尺寸：160cm x 80cm |
Key Specifications
| Model code 型号代码 | Capacity 额定载重 | Lift height 起升高度 |
|---|---|---|
| ZGDDJSJ150 | 300 / 500 kg | 1.5m |
| ZGDDJSJ200 | 300 / 500 kg | 2m |
| ZGDDJSJ250 | 300 / 500 kg | 2.5m |
| ZGDDJSJ300 | 300 / 500 kg | 3m |
| ZGDDJSJ350 | 300 / 500 kg | 3.5m |
| ZGDDJSJ400 | 300 / 500 kg | 4m |
| ZGDDJSJ450 | 300 / 500 kg | 4.5m |
| ZGDDJSJ500 | 300 / 500 kg | 5m |
| ZGDDJSJ550 | 300 / 500 kg | 5.5m |
| ZGDDJSJ600 | 300 / 500 kg | 6m |
| ZGDDJSJ700 | 300 / 500 kg | 7m |
| ZGDDJSJ800 | 300 / 500 kg | 8m |
| ZGDDJSJ1000 | 300 / 500 kg | 10m |
Key Features
FEATURES & APPLICATIONS:
功能特性：
- Dual anti-fall safety with reliable slow descent during power outage, 双重防坠安全保护，断电时支持平稳缓降；
- equipped with guardrails and outriggers, 标配安全护栏与外伸支撑腿；
- wireless remote-controlled lifting, 无线遥控升降操作；
- load capacity 300/500kg optional, 300kg/500kg 载重可选；
- lifting speed 8m/min, 升降速度 8m/min；
- foldable for 1.5-5m models, 1.5-5米规格支持折叠；
- CE certified and OEM supported. CE 认证并支持 OEM 定制。
Applications: Interior and exterior decoration, wall painting, door and window installation, curtain wall construction, property maintenance, factory maintenance, warehouse sorting and building repairs.
应用场景：室内外装潢粉刷、墙面涂装、门窗安装、玻璃幕墙施工、物业维保、厂房维护、高位货架理货及建筑物修缮。
ADDITIONAL CONFIGURATION NOTES:
补充配置说明：
| Scaffold lift speed 8 m/min. | 升降速度 8 m/min。 |
| Guardrails, outriggers and wireless control. | 标配护栏、支腿和无线遥控。 |
| Knowledge-base foldability: 1.5-5 m models; confirm the exact folding configuration. | 产品库资料折叠特性：1.5-5米机型支持折叠，需在订单中确认具体折叠配置方案。 |
| Overall-dimension height units in the source require confirmation. | 原文件中外形尺寸的高度单位存在歧义，需核实确认。 |
CERTIFICATION & AFTER-SALES:
认证与售后：
| CE; compliant with the EU Machinery Directive. | CE 认证；符合欧盟机械指令。 |
| Warranty: 1 year for the whole machine; 3 months for wearing parts. | 保修期：整机质保 1 年；易损件质保 3 个月。 |
| Wearing parts: Steel wire rope, cylinder seal ring, front wheel (polyurethane), charger. | 易损件清单：钢丝绳、油缸密封圈、前轮（聚氨酯 PU 轮）、充电器。 |
