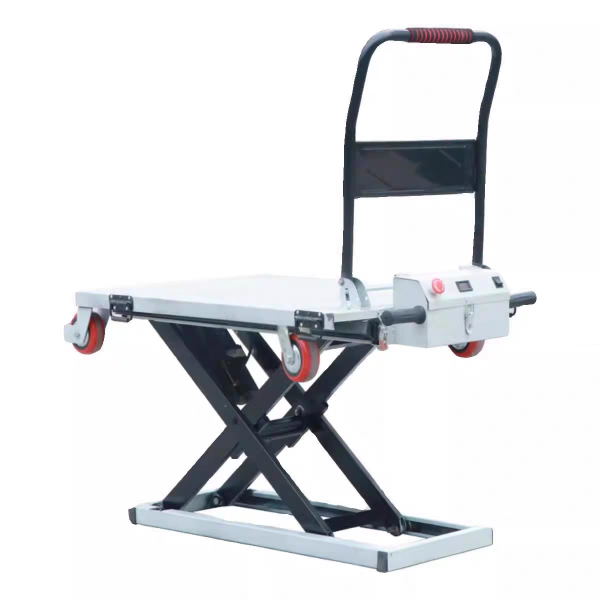

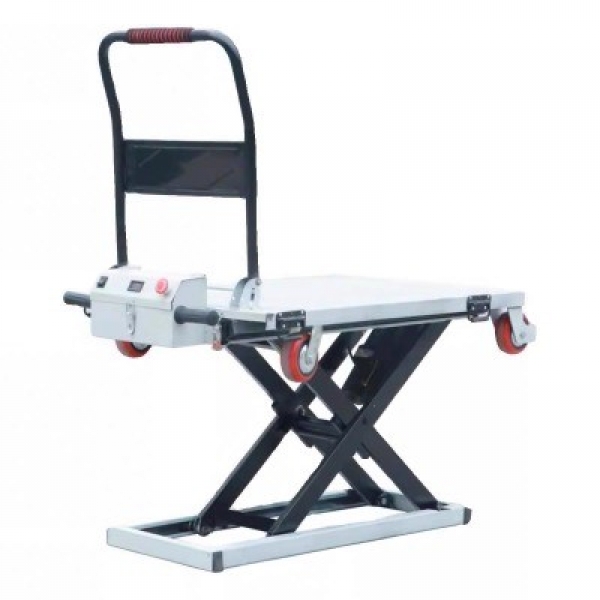

Electric platform trolley

Product Specifications / 产品参数规格

A mobile scissor platform range for raising and positioning goods.

移动式剪叉升降平台推车系列，用于物品的高效升降搬运与人体工学定位。

[Model capacities: 180-350 kg] 【载重范围：180-350 kg】
[Lift height: 106-135 cm] 【起升高度：106-135 cm】
[Listed configurations: 3 variants] 【收录配置：3款规格】

Power: 12V 7Ah Lead-acid Battery (OEM Supported)

动力系统：12V 7Ah 铅酸蓄电池（支持 OEM 定制）

Key Specifications

Model code 型号代码	Capacity 额定载重	Lift height 起升高度	Net weight 净重	Machine & Platform details 整机与台面尺寸	Wooden case dimensions 木箱包装尺寸	Packed weight 包装重量
ZGXMLK106	200kg	106cm	65kg	Mach: 130x72x88cm; Plat: 120x70cm 整车: 130x72x88cm; 台面: 120x70cm	138 x 88 x 62cm	85kg
ZGXMLK123	180kg	123cm	80kg	Mach: 158x72x105cm; Plat: 145x70cm 整车: 158x72x105cm; 台面: 145x70cm	163 x 80 x 33cm	100kg
ZGXMLK135	350kg	135cm	80kg	Mach: 110x75x105cm; Plat: 100x73cm 整车: 110x75x105cm; 台面: 100x73cm	115 x 80 x 45cm	100kg

Key Features

FEATURES & APPLICATIONS: Compact scissor platform; electric lifting; flexible handling; lightweight body; OEM supported.
功能特性：紧凑型剪叉升降台；一键电动升降；灵活推动搬运；轻量化高刚性车身；支持 OEM 定制。

Applications: Warehouse handling, factory workshops, cargo loading and unloading, supermarket retail, logistics distribution, maintenance operations.
应用场景：仓储转运、工厂车间流水线、货物装卸、商超零售理货、物流末端配送、设备检修作业。

CERTIFICATION & AFTER-SALES: CE; compliant with the EU Machinery Directive. Warranty: 1 year for the whole machine; 3 months for wearing parts. Wearing parts: Steel wire rope, cylinder seal ring, front wheel (polyurethane), charger.
认证与售后：CE 认证；符合欧盟机械指令。保修期：整机质保 1 年；易损件质保 3 个月。易损件清单：钢丝绳、油缸密封圈、前轮（聚氨酯 PU 轮）、充电器。
