Build Your Storage, Your Way
- Model: Q900
- Brand: ZG-HELPLIFT
- Port:
- Quantity:
Everything moves when you drive
An empty trunk is not short of space — it is short of fixed positions. Anything without a home slides on corners, knocks into its neighbours on rough roads, and rattles the whole way.
So every trip ends the same way: unpacking everything, sorting it out, and packing it again. And nothing you carry is any the safer for it.
A boot is only organised when each item has somewhere it belongs.
A floor that grips, and blocks that hold

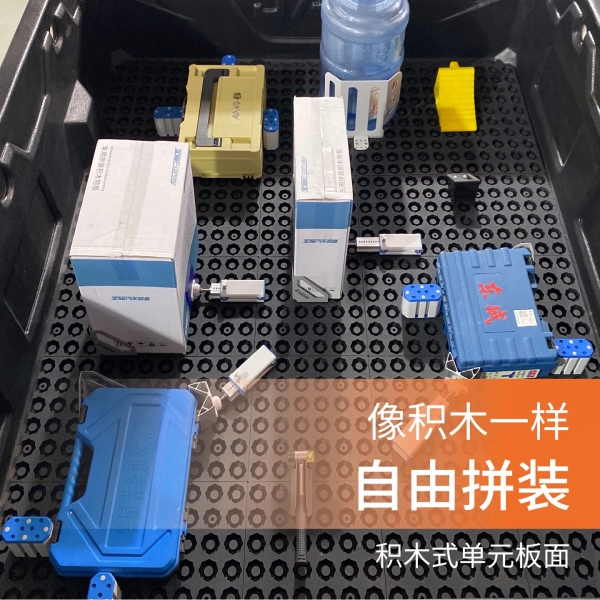

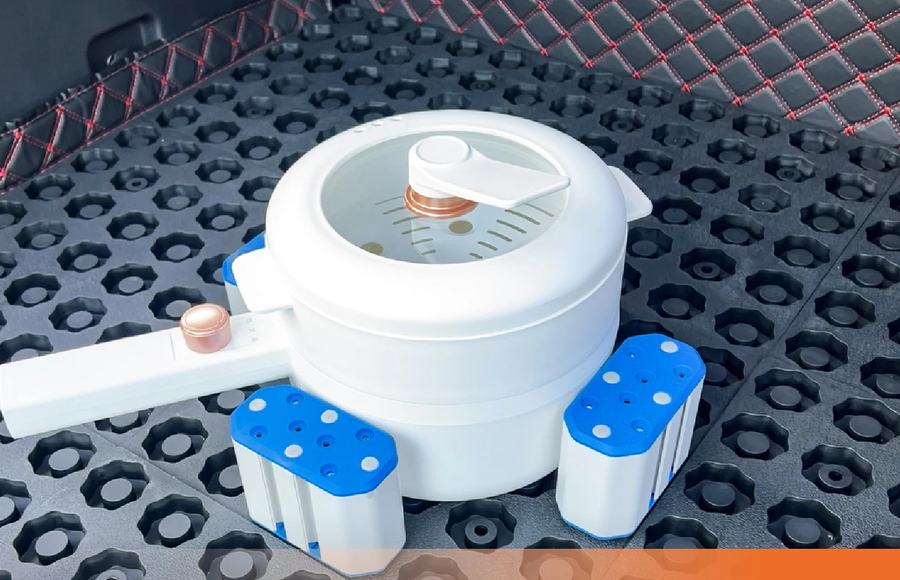

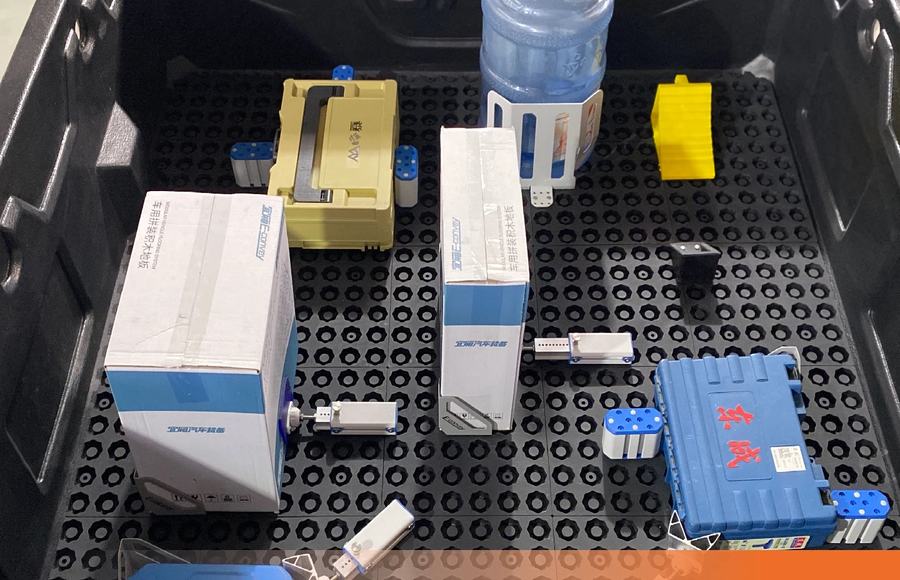

Modular Cabin System turns the floor of your cargo area into a grid you can build on. Panels lock together by hand to form the base; plugs, blocks and adjustable arms clip into the reserved slots above them. Put a box down against a corner block, a bottle against an arc head, a tool case between two face blocks — and it stays there.
Lay the panels
Snap 300 × 300 mm base panels together into a grid that suits your space. Twin latch edges meet twin slot edges — they press together by hand, and no tools are needed.
Clip in the modules
Push plugs into the slots to build holding points. Add corner blocks, face blocks, slot blocks, point blocks or adjustable arms wherever your items need support. Everything is push-fit and repositionable.
Place and go
Set your case, crate, bottle or box into position. Change the layout whenever your load changes — pull the modules out and rebuild in a different arrangement.
One system, a full set of parts
Panels form the base. Plugs create the holding points. Blocks, arms and interchangeable heads adapt those points to the shape of whatever you are carrying — square corners, flat faces, curved containers or the full height of a crate.
Base panels
| Part | Size (L×W×H) | Colour | Material | Slots |
|---|---|---|---|---|
| Standard panel | 300 × 300 × 17 mm | Black | Reinforced composite nylon | 36 standard slots |
| Edge / trim panel | 300 × 50 × 17 mm | Black | Reinforced composite nylon | 6 standard slots |
Connector plugs
| Part | Size (L×W×H) | Colour | Material | Notes |
|---|---|---|---|---|
| Standard plug | 40 × 40 × 15 mm | Black | Reinforced composite nylon | Standard holding force; pairs with the panel slots |
| Heavy-duty plug | 40 × 40 × 15 mm | Grey | Reinforced composite nylon | Stronger holding force for heavier loads |
Positioning blocks
| Part | Size (L×W×H) | Colour | Material | Best for |
|---|---|---|---|---|

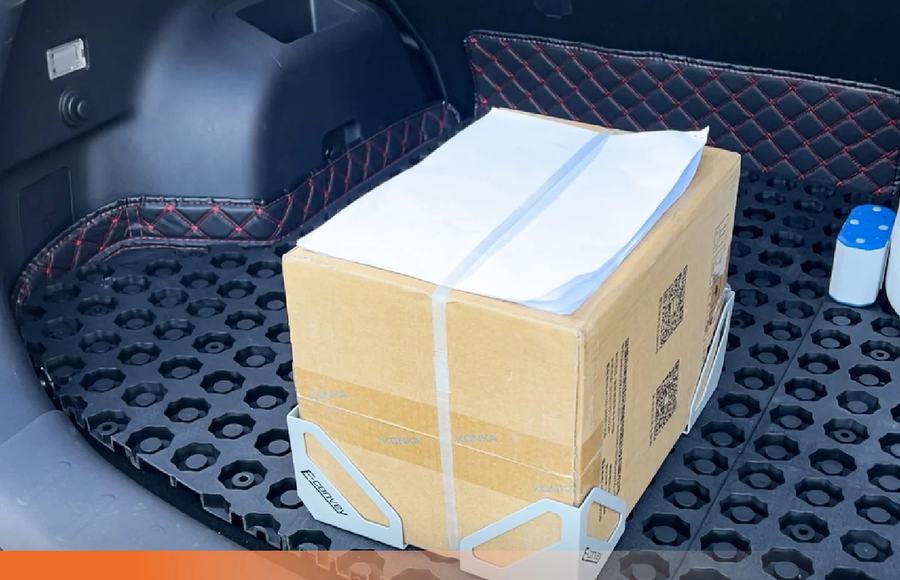

| Corner block | 98 × 98 × 102 mm | Grey | Powder-coated sheet metal | Corners of cases and crates — two-way restraint. Supplied with 2 standard plugs. |
| Face block | 100 × 49 × 75 mm | Grey + blue | Aluminium alloy | Large cases and slippery items — wide contact face for single-side restraint. Supplied with 2 standard plugs. |
| Slot block | 95 × 45 × 45 mm | Grey | Reinforced composite nylon | Building dividers — twin plugs with a 20 mm slot for inserting boards or plywood. |
| Point block | 40 × 40 × 20 mm | Grey | Reinforced composite nylon | Low-profile filling and anti-roll support for light loads. |
| Base block | 50 × 50 × 22.5 mm | Grey | Reinforced composite nylon | Fixing partitions — mounts to the underside of a toolbox, organiser or storage case. |
Adjustable arms & interchangeable heads
| Part | Size (L×W×H) | Colour | Material | Notes |
|---|---|---|---|---|
| Adjustable arm — long | 200 × 50 × 30 mm | Grey + blue | Aluminium + reinforced composite nylon | Extends 0–50 mm. Two standard plugs and a switchable rear plug position for straight, vertical or 45° bracing. |
| Adjustable arm — short | 130 × 50 × 30 mm | Grey + blue | Aluminium + reinforced composite nylon | Extends 0–25 mm. One heavy-duty plug; supports straight, vertical or 45° bracing. |
| Corner head | 80 × 45 × 65 mm | Grey | Aluminium alloy | Seats against the corner of a box or square item. |
| Face head | 100 × 6 × 65 mm | Grey | Reinforced composite nylon | Flat contact for items with a plain side; limits sideways movement. |
| Arc head | 105 × 25 × 62 mm | Grey | Reinforced composite nylon | Curved contact for bottles, drums, cans and other round items. |
| Top-brace connector | 81 × 23.5 × 70 mm | Grey | Powder-coated sheet metal | Braces the arm diagonally against the vehicle wall to stop the whole panel from shifting. |
Sizes are nominal, expressed as length × width × height. Colours may vary slightly between production batches.
Six things you notice the first time you use it
No tools, no drilling
Panels press together by hand and modules push into the slots. Nothing is screwed, bolted or glued to your vehicle, so nothing is left behind if you sell it.
Rebuild it any time
Change the layout for a camping trip, a tool run or a grocery shop. Pull the modules, reposition them, press them back in.
Anti-slip and anti-roll
The raised grid grips the load while the blocks stop it rolling. Cases stay square in the bay; bottles and drums stop wandering.
Adapts to the shape
Interchangeable heads cover square corners, flat panels and curved containers, and the adjustable arms let you dial in the exact gap or brace.
Removable and washable
Lift the panels out to shake them off or hose them down. Dirt, grit and spills do not have to live in your trunk forever.
Stows flat when unused
When you need the full bay back, the panels come apart and stack flat for compact storage.

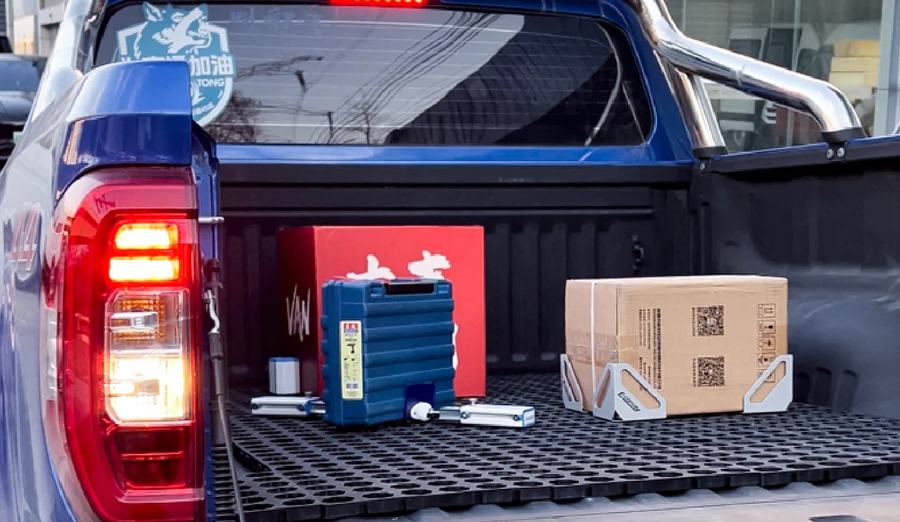

One system, three kinds of cargo space
Two ways to cover the floor
No-cut assembly
Lay whole panels in a grid. There may be a small gap at the edges of an irregular floor, and it has no effect on normal use. Ideal if you want to move the system between vehicles.
Full-coverage assembly
Trim the outermost panels to follow the contour of your floor for a complete finish. The panels can be cut to shape, so measure your vehicle first and plan the grid around the cuts.
Panel quantities and cutting ranges depend on the measured dimensions of your vehicle. Tell us your make, model and the area you want covered, and we will work out the panel count with you.
Lay it once, in the right direction
Every panel has two latch edges and two slot edges. With the front of the vehicle as forward, lay all panels the same way round: slot edges towards the rear of the vehicle and to the left-hand side, latch edges towards the front and the right-hand side.
Get that orientation right and the assembly works in your favour — when you lift the finished panel from the rear of the vehicle, the panels' own weight presses the latches deeper into the slots instead of pulling them apart.
Important — how this system is designed to be used
Modular Cabin System is an organisation, positioning and auxiliary-fixing product. It does not increase the load your vehicle is rated to carry, and it does not replace your vehicle's original anchor points or straps.
For heavy items, items with a high centre of gravity, or when driving over rough ground, always secure the load with the vehicle's original anchor points and suitable straps in addition to the modules.
Colours are shown for illustration and may vary slightly between production batches.
